Metal Insulating Sandwich Panel

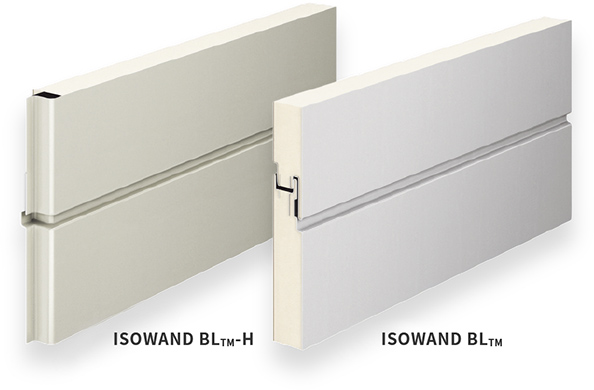

ISOWAND BL-H·ISOWAND BL
- Exterior material that gives buildings a sophisticated, beautiful appearance and high functionality.
- ISOWAND BL is a heat insulation wall panel with an excellent wide and flat design.
In addition, ISOWAND BL-H has end portion box folding specifications and a longitudinal joint cover which does not need a sealing finish, and this can be finished into a sophisticated and beautiful appearance. This enhances the performance of the building with high functionality.
Features
- Excellent design
- The long, wide and flat panel can be freely designed
- High strength earthquake resistance
- Excellent strength and earthquake resistance with a close contact sandwich structure
- High heat insulation
- Prevents heat inflow and outflow with high performance core material and a unique mating structure
- High weatherability
- Uses a coated steel sheet with excellent contamination resistance and weather resistance
- High fire protection
- Quasi-fireproof buildings and legislation available for a wide range in the Article 22 area
- Excellent workability
- Long/lightweight, shortened construction period and reduced work in the field as well
Standard Specifications
| ISOWAND BL-H *1/ISOWAND BL | |||
|---|---|---|---|
| Core material | Polyisocyanurate foam | ||
| Product thickness (mm) | 25 | 35 | 50 |
| Moving width (mm) | 910·600 | ||
| Product length (m) | 0.8-9.0 *2 We will make custom orders with specified dimensions. | ||
| Weight (kg/m2) | 11.0 | 11.5 | 12 |
| Shape | Flat/A Wave *3 | ||
| Exterior facing | Fluorine rasin pre-painted SGL·Polyester pre-painted SGL(0.5mm) | ||
| Interior facing | Polyester coated GL (0.5mm) | ||
| Heat transmission coefficient | 0.78W/m2K | 0.52W/m2K | 0.36W/m2K |
- *1It is necessary to consider the ISOWAND BL-HTM vertical joint width according to product length. Please refer to the design/technical data.
- *2Please consult with us about product lengths less than 0.8m. For product lengths more than 9.0m and less than 10.0m, please contact us in advance since there is a delivery permission application.
- *3Please consult the A wave shape.

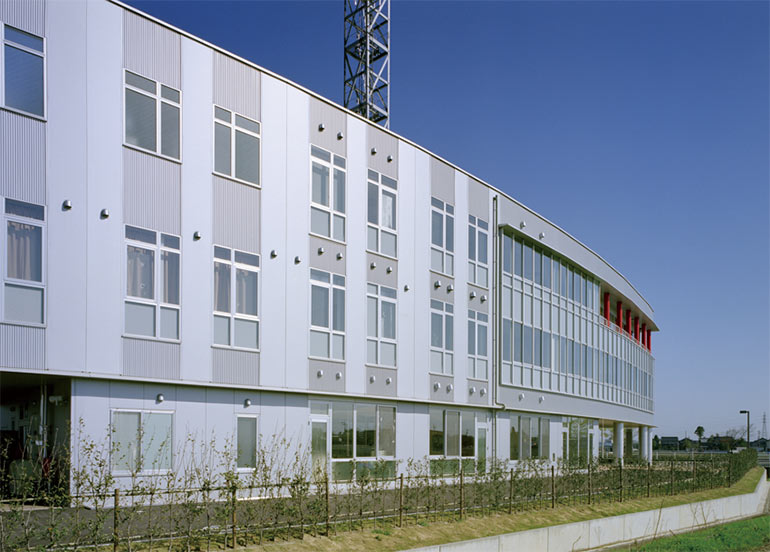

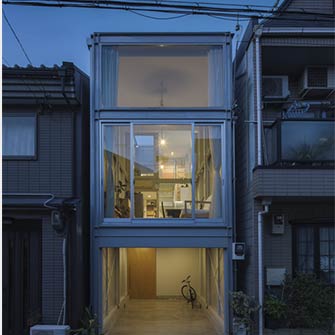

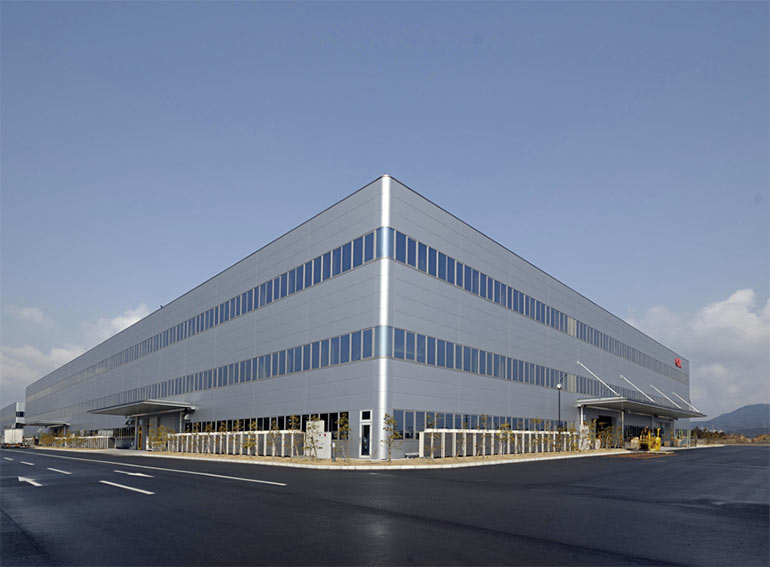

Construction case

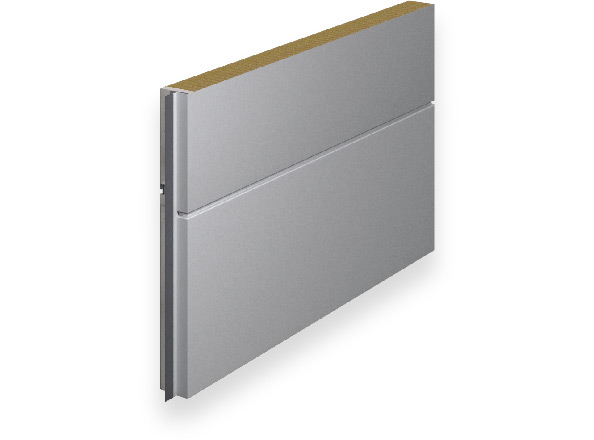

FIREPROOF ISOWAND PRO
- Next generation standard panels are pursued with beauty and performance to the utmost limit.
- As a pioneer manufacturer of metal insulation sandwich panels, FIREPROOF ISOWAND PRO is a new product that pursues attention to detail, along with improving performance with original ideas and technologies.
Features
- Excellent design
- Sharp appearance (deep joint/sharp edge).
Fresh color variations with new colors.
- High strength earthquake resistance
- Excellent resistance to wind pressure (about 1.5 times that of conventional products).
- High heat insulation
- Rock wool demonstrates an insulation effect 3 times that of a ceramic panel.
- High weatherability
- Uses a coated steel sheet with excellent contamination resistance and weather resistance.
- High fire protection
- Available for a wide range, including refractory buildings.
- Excellent workability
- Vertical paneling/ Horizontal paneling is possible. Certified furrowing strip interval expansion (possible up to 2m pitch).
Standard Specifications
| FIREPROOF ISOWAND PRO | ||
|---|---|---|
| Core material | Rock wool | |
| Product thickness (mm) | 50 | 75 |
| Moving width (mm) | 600·750·900·1000 | |
| Product length (m) | 0.8-9.0 *1 We will make custom orders with specified dimensions. | |
| Weight (kg/m2) | 19.0 | 24.0 |
| Shape | Flat | |
| Exterior facing | Fluorine rasin pre-painted SGL·Polyester pre-painted SGL(0.5mm) | |
| Interior facing | Polyester pre-painted GL (0.5mm) | |
| Heat transmission coefficient | 0.88W/m2K | 0.63W/m2K |
- *1Please consult with us about product lengths less than 0.8m.
For product lengths more than 9.0m and less than 10.0m, please contact us in advance since there is a delivery permission application.
