Pre-painted SGL Series

Pre-painted SGL Series

Pre-painted SGL Series

NISC-COLOR PRO

The birth of a new era of color steel sheets
By further evolving the proven Nisc-color coated film and combining it with the next-generation galvalume steel sheet"SGL™", we have succeeded in maintaining a long-term aesthetic, improving scratch resistance, and improving the convenience of handling.
Nisc-color Pro contributes to further expanding the use scene of metal exterior materials and improving the satisfaction of builders.

Features

Adopts the next generation Galvalume Steel Sheet "SGL"
Adds a magnesium rust prevention effect on the Galvalume Steel Sheets. We realized corrosion resistance 3 times greater than that of Galvalume Steel Sheets.

  • SGL Coating Structure
    SGL's coating structure added 2% magnesium while maintaining a "three-dimensional network structure" which supports high corrosion resistance in Galvalume Steel Sheets. It has a structure in which the magnesium-rich phase coexists in the zinc-rich phase.
    With the effect of magnesium, the zinc-rich phase forms a tighter protective film, thereby realizing excellent corrosion resistance.

NISC-COLOR PRO GH
  • Excellent weatherability
    Due to the deterioration of the coating film, the choking resin is prone to wear and tear, which causes not only discoloration but also performance degradation as a painted steel sheet. Nisc-color Pro selects resins and pigments that are highly resistant to moisture, ultraviolet rays, heat, etc., which are causes of deterioration of the coated film. In addition, we study the deterioration process for each hue and design the paint optimally for each.

  • Beautiful appearance
    Nisc-color Pro GH has an unprecedented matte feeling with a new matte method. It has an extremely low gloss appearance that suppresses surface glare due to direct sunlight and has high color development, creating a more profound and calm appearance than conventional painted steel sheets.

NISC-COLOR PRO GC
  • Improved scratch resistance
    By redesigning the coated film by applying a unique coated film strengthening technology to the Nisc-color, scratch resistance has been improved. It reduces scratches during molding, transportation, and processing, making it easier to handle than ever before. In addition, it can be used for various applications of roofs and walls with color variations reflecting modern needs.

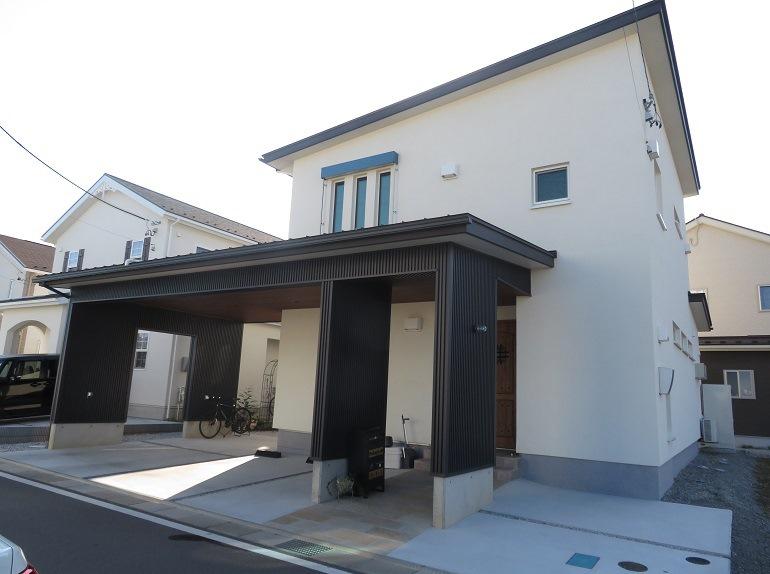

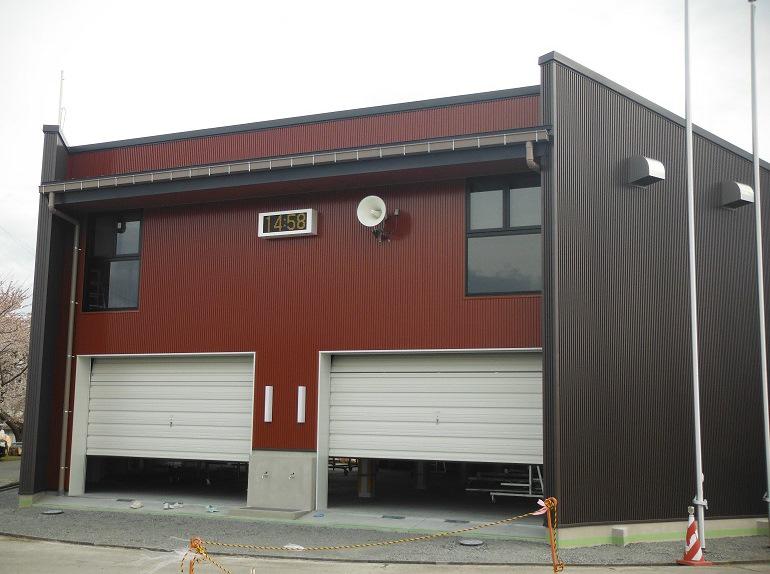

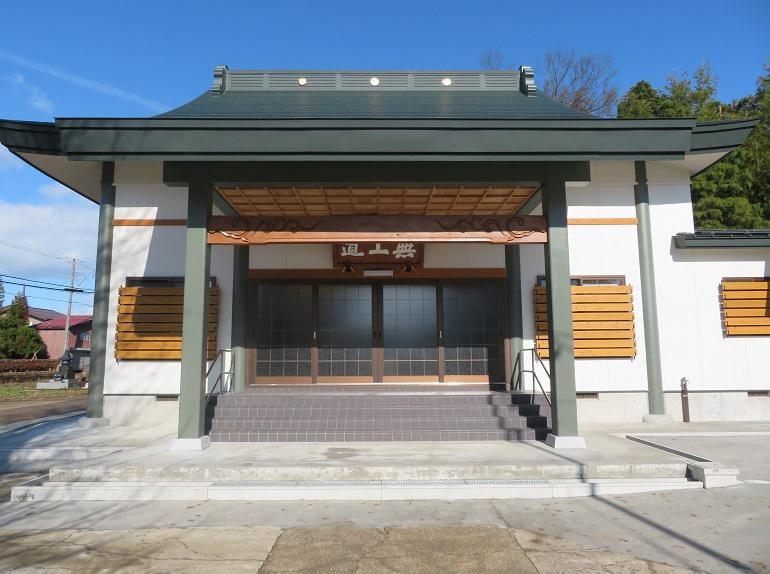

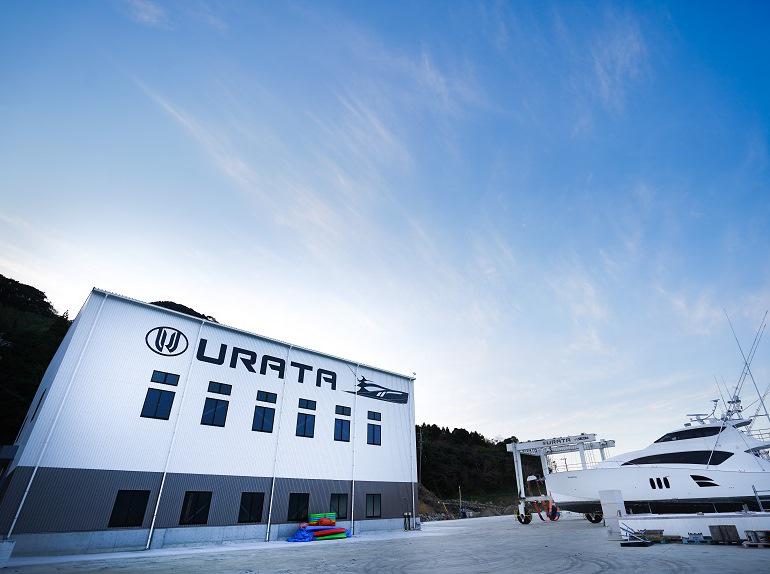

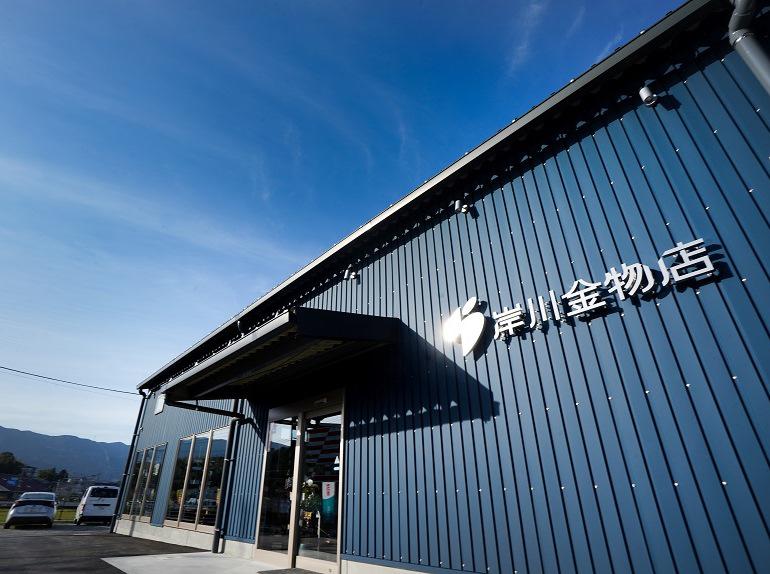

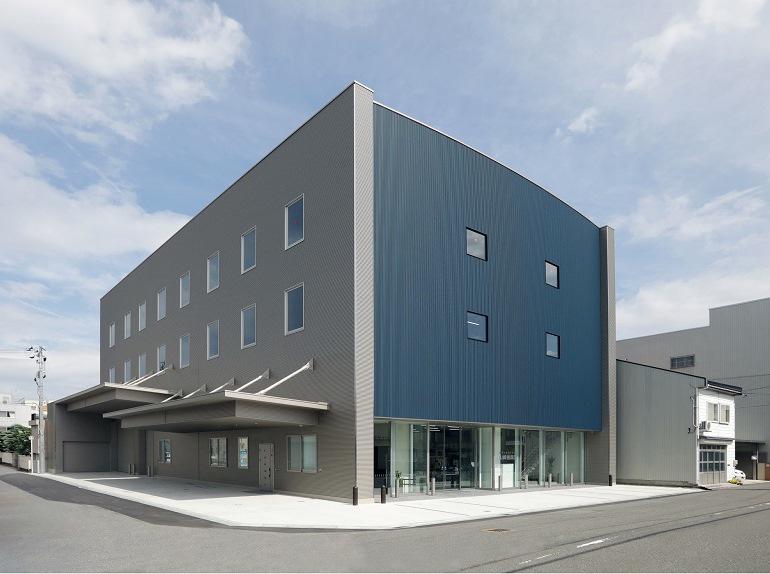

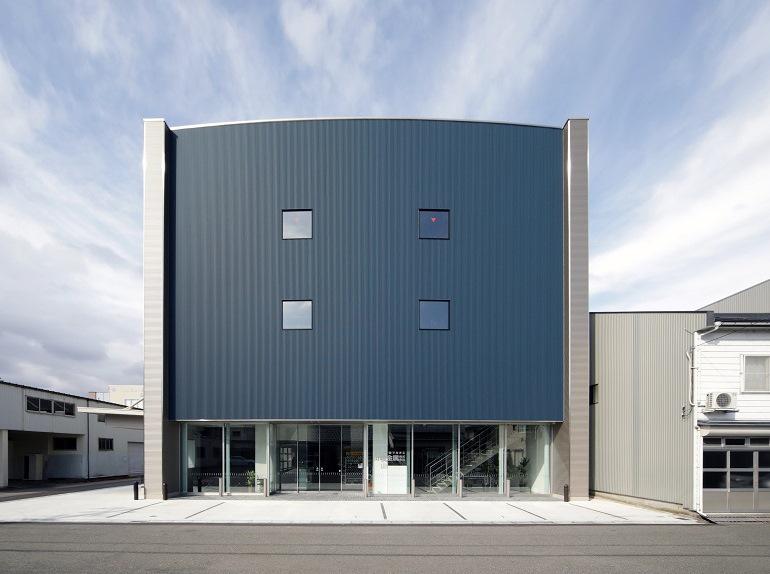

Construction example

TAIMA-COLOR SGL

A highly functional color steel sheet born through continuing evolution
Pioneer of a luxury brand/wear-resistant color steel sheet which has been popular for many years as a matte steel sheet. This has evolved with NISC's outstanding technology. This time, the next generation Galvalume Steel Sheet "SGL" has been adopted and evolved even further.

Features

The synergistic effect of paint and coated steel sheets significantly reduces white rust during the initial stage of construction
Long-term durability is significantly improved due to the synergistic effect of SGL and special glass fiber reinforced paint. Moreover, it is extremely great with reducing white rust at the beginning of construction, so you can use it more securely in terms of maintaining aesthetic appearance.

  • Strong and supple paint matches with SGL's high corrosion resistance
    Through the action of special glass fibers in the paint, cracks in painting surface layer are less likely to occur. Therefore, it is difficult for white rust to appear on the painting surface, and we can make maximum use of the high corrosion resistance merit of SGL.

  • Special glass fiber micrograph
    Special glass fiber plays the same role as straw in the clay wall. In other words, since fibers are integrated as paint joints, they create a balance of strength and suppleness.

Heat insulation function/self-cleaning function are also standard features.
A heat insulation function is installed in all paint colors. We have secured sunlight reflectance of 40% or more. A self-cleaning function is equipped in the color for the wall.

NISC-FLON SGL

The ultimate fluorine resin painted steel sheet equipped with the next generation Galvalume Steel Sheet.
NISC-FLON has been performing as a highly functional fluorine pre-painted steel sheet. While inheriting its excellent weatherability and other functions, the next generation Galvalume Steel Sheet "SGL" was equipped as a standard, so the ultimate fluorine resin pre-painted steel sheet was born. This realizes long-term durability far exceeding conventional products, and contributes to the maintenance of long-term aesthetic appearance and the reduction of maintenance costs. This sheet can be adopted for a wide range of buildings, including housing, public facilities, production/logistics facilities.

Features

Adopts the next generation Galvalume Steel Sheet "SGL"
Adds a magnesium rust prevention effect to Galvalume Steel Sheets as a base. We realized corrosion resistance 3 times greater than that of Galvalume Steel Sheets.

Significant improvement of long-term durability
Long-term durability is significantly improved due to the synergistic effect of SGL and the highest level fluorine resin paint. This contributes to the long-term use of buildings and the long-term preservation of aesthetic appearance.

Heat insulation function/self-cleaning function have been equipped as a standard.
A heat insulation function which selectively reflects infrared rays is equipped in the roof color paint. In addition, a self-cleaning function through hydrophilization of the painting surface layer is equipped in the color paint for the wall.

HIGH RETHANE SGL

Thick urethane resin paint x Next generation Galvalume Steel Sheets
Thick urethane resin coated steel sheet HIGH RETHANE which has demonstrated outstanding corrosion resistance near the coast and industrial areas. Next generation Galvalume Steel Sheet "SGL" is equipped as a pre-painted steel sheet, and further improvement in corrosion resistance has been realized.

Features

Adopts the next generation Galvalume Steel Sheet "SGL"
Adds a magnesium rust prevention effect with Galvalume Steel Sheets as a base. We realized corrosion resistance 3 times greater than that of Galvalume Steel Sheets.

Exceptional corrosion resistance with thick urethane coating
Thick urethane resin paint has a large barrier effect to prevent the entry of corrosive factors. It also contains a lot of rust preventive ingredients, so corrosion resistance lasts for a long time.

Excellent heat insulation function
A special thermal barrier pigment which reflects infrared rays is incorporated into the paint. It suppresses temperature rising on the steel sheet surface.
